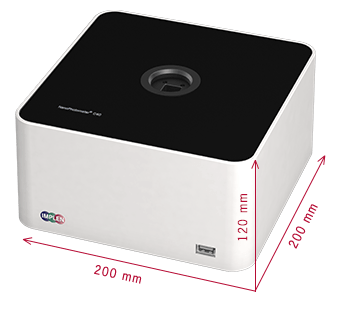

Dimensions

implen, nanovolume, nanophotometer, spectrophotometer, nanodrop alternative, nano drop,

Weight

3.8-5.2 kg depending on configuration

Processing Power/Software

implen, nanophotometer, spectrophotometer, nanodrop alternative, nano drop, c40_side

  • Linux based NPOS
  • Quad Core 1 GHz Processor
  • 32 GB Internal Storage
  • 2x USB A, USB B, HDMI, Ethernet, WLAN

Speed

1 GHz

Display

1024 x 600 pixels; Touch-Screen glove compatible

implen, nanophotometer, spectrophotometer, nanodrop alternative, nano drop, 12.16_N60_HIRES_camerascreen14_top2

Built-in Battery Pack

Optional rechargeable lithium ion battery; 95Wh, 6.6Ah; Operation time: up to 10 h; min. charging cycles: 800

NanoVolume Performance

Cuvette Performance

Detection Range dsDNA0.1 ng/µl to 130 ng/µl
Detection Range BSA0.003 mg/ml to 3.7 mg/ml
Photometric Range0.002 – 2.6 A
Center Height (Z-Height)8.5 mm
Cell Typesoutside dimension 12.5 x 12.5 mm
Heating37°C ± 0.5°C

Optical Specifications

Wavelength Scan Range200 – 900 nm
Measure Time For Full Scan Range3.5 seconds
Wavelength Reproducibility± 0.2 nm
Wavelength Accuracy± 0.75 nm
Bandwidth1.8 nm
Stray Light< 0.5% at 220 nm using NaI
Absorbance Reproducibility0.002 (both paths) @ 280 nm
Absorbance Accuracy±0.002 A or ±1% of the reading, whichever is the greater
Zero Stability±0.003 A/hour after 20 min warm up @ 280 nm
Noise0.002 A rms at 0 A @ 280 nm
0.002 A (pk to pk) at 0 A @ 280 nm
Optical Arrangement1 x 3648 CCD Array
LampXenon flash lamp
Lifetime109 flashes, up to 10 years

Compatibility Requirements

Control OptionsOnboard with built-in touch screen, computer, smartphone and tablet
Software CompatibilityWindows 7, 8, 10 (32 & 64 bit), OS X, iOS and Android OS
Min. Requirement Smart Phone/Tablet4 inch screen
Apple: iPad 2, iPhone5 and iOS 6
Android Phone: OS Version 4.4
Android Tablet: OS version 5.0, Quadcore 1.2 GHz with 1 GB RAM
