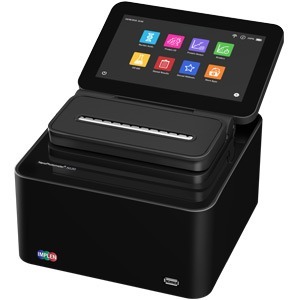

NanoPhotometer® N120 Tech Specs

12-Channel Microvolume Spectrophotometer | 20 seconds per full run | Scan Range 200 – 900 nm

General Specifications

Dimensions: 20 cm x 20 cm x 12 cm

Weight: 5.0 – 5.2 kg depending on configuration

Processing Power/Software

Linux based NPOS
Intel Celeron dual core 2.4 GHz
128 GB Internal Data Storage
2x USB A, USB B
HDMI, Ethernet, WiFi
Windows 8, 10, 11 (32 & 64 bit)
OS X (Intel x86 and Apple M1)
iOS and Android OS

Display

1024 x 600 pixels
Glove compatible touchscreen

Built-in Battery Pack

Optional rechargeable lithium ion battery: 47.5 Wh, 3.3 Ah, 3h
Min. charging cycles: 800

NanoVolume
Performance

Detection Range dsDNA	2 – 8,000 ng/µl
Detection Range BSA	0.06 – 230 mg/ml
Sample Volume	2 – 3.5 µl
Photometric Range (10 mm equivalent)	0.04 – 160 A
Path Length	1 and 0.125 mm
Dilution Factor	10 and 80

Optical
Specifications

Wavelength Scan Range	200 – 900 nm
Measure Time For Full Scan Range	1.7 – 2.5 seconds per sample, 20 seconds full run
Wavelength Reproducibility	± 0.2 nm
Wavelength Accuracy	± 0.75 nm
Bandwidth	< 2.5 nm
Absorbance Reproducibility	(Lid 10): < 0.004 A @ 0 – 0.3 A @ 280 nm CV < 0.4% @ 0.8 A @ 280 nm
Absorbance Accuracy	< 1.75% @ 0.7 A @ 280 nm of the reading
Stray Light	< 1% @ 240 nm using NaI
Optical Arrangement	1 x 4096 CMOS Array
Lamp	Xenon flash lamp
Lifetime	109 flashes, up to 10 years

General
Specifications

Operating Voltage	90 – 250 V ± 10%, 50/60 Hz, 90 W, 18/19 VDC
Certification	CE, IEC 61010-1:2012 and EN 61326-1:2013
Battery Certification	IEC 62133 and UN38.3 transport test
Security	Slot for Kensington lock
