NanoPhotometer® N60/N50 Tech Specs

Nucleic Acid & Protein UV-Assay Measurements, plus much more | Starting at 0.3 µl | Scan Range 200 – 900 nm

General Specifications

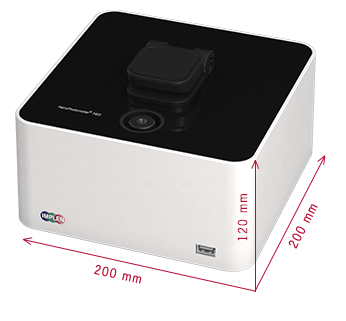

Dimensions: 20 cm x 20 cm x 12 cm

Weight: 3.8 – 5.2 kg depending on configuration

Processing Power/Software

Linux based NPOS
Intel Celeron dual core 2.4 GHz
64 GB Internal Data Storage
2x USB A, USB B
HDMI, Ethernet, WiFi
Windows 8, 10, 11 (32 & 64 bit)
OS X (Intel x86 and Apple M1)
iOS and Android OS

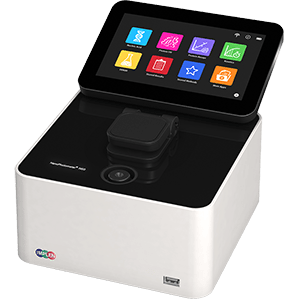

Display

1024 x 600 pixels
Glove compatible touchscreen

Built-in Battery Pack

N60: Optional rechargeable lithium ion battery
95 Wh, 6.6 Ah, 8 h
Min. charging cycles: 800

N50: Battery not included

NanoVolume
Performance

Detection Range dsDNA	N60: 1 – 16,500 ng/µl N50: 5 – 7,500 ng/µl
Detection Range BSA	N60: 0.03 – 478 mg/ml N50: 0.15 – 217 mg/ml
Minimum Sample Size	0.3 – 2 µl
Photometric Range (10 mm equivalent)	N60: 0.02 – 330 A N50: 0.1 – 150 A
Path Length	0.67 and 0.07 mm
Dilution Factor	15 and 140
Vortex	N60: 2,800 rpm; tube size up to 2.0 ml N50: no vortex included

Optical
Specifications

Wavelength Scan Range	N60: 200 – 900 nm N50: 200 – 650 nm
Measure Time For Full Scan Range	2.5 – 4 seconds
Wavelength Reproducibility	N60: ± 0.2 nm N50: ± 1 nm
Wavelength Accuracy	N60: ± 0.75 nm N50: 1.5 nm
Bandwidth	N60: < 1.5 nm N50: < 3 nm
Absorbance Reproducibility	N60: (Lid 15): < 0.002 A @ 0 – 0.3 A @ 280 nm CV < 1% @ 0.3 – 1.7 A @ 280 nm N50: (Lid 15): < 0.004 A @ 0 – 0.3 A @ 280 nm CV < 1% @ 0.3 – 1.5 A @ 280 nm
Absorbance Accuracy	< 1.75% @ 0.7 A @ 280 nm of the reading
Stray Light	N60: < 0.5% @ 240 nm using NaI N50: < 2% @ 240 nm using NaI
Optical Arrangement	1 x 4096 CMOS Array
Lamp	Xenon flash lamp
Lifetime	109 flashes, up to 10 years

General
Specifications

Operating Voltage	90 – 250 V ± 10%, 50/60 Hz, 90 W, 18/19 VDC
Certification	CE, IEC 61010-1:2012 and EN 61326-1:2013
Battery Certification	N60: IEC 62133 and UN38.3 transport test
Security	Slot for Kensington lock
